Home > Products > Reactor > Stainless Steel Crystallization Reactor
Model |
YFR-10SEX |
YFR-20SEX |
YFR-30SEX |
YFR-50SEX |
YFR-100SEX |
YFR-200SEX |
YFR-300SEX |
Net Volume(L) |
10 |
20 |
30 |
50 |
100 |
200 |
300 |
Material |
The part contact with the material is SUS316, and the rest is S30408 |
||||||
Stirring Motor |
Motor power 200W Inerter, 80 460 rpm |
Motor power 370W Inerter, 80 350rpm |
Motor power 750W Inerter, 80 350rpm |
Motor power 1.5KW Inerter, 80 350rpm |
|||
Sealing Form |
Mechanical sealing |
||||||
Reactor Lid Openings |
One Temperature measure port, installed thermometer. TC50.5*DN20 |
||||||
Reactor Lid Openings |
One liquid feeding port, TC50.5*DN20, with one ball valve |
||||||
Reactor Lid Openings |
One gas protection port, TC50.5*DN20, with one ball valve |
||||||
Reactor Lid Openings |
One gas protection port, TC50.5*DN20, with one ball valve |
||||||
Reactor Lid Openings |
One sight glass DN50 |
One sight glass DN80 |
|||||
Reactor Lid Openings |
One powder addition port DN50 |
One powder addition port DN80 |
One powder addition port DN100 |
||||
Filter Plate Material |
SUS316L |
||||||
Filter Plate Pore Size |
10um |
||||||
Discharge Port |
TC50.5*DN38 |
||||||
Reactor Working Pressure (MPa) |
-0.1-0.1MPa |
||||||
Reactor Working Temperature (C) |
-20-200°C |
||||||
Power Supply |
220V 1P |
380V 3P |
|||||
PRODUCT DESCRIPTION

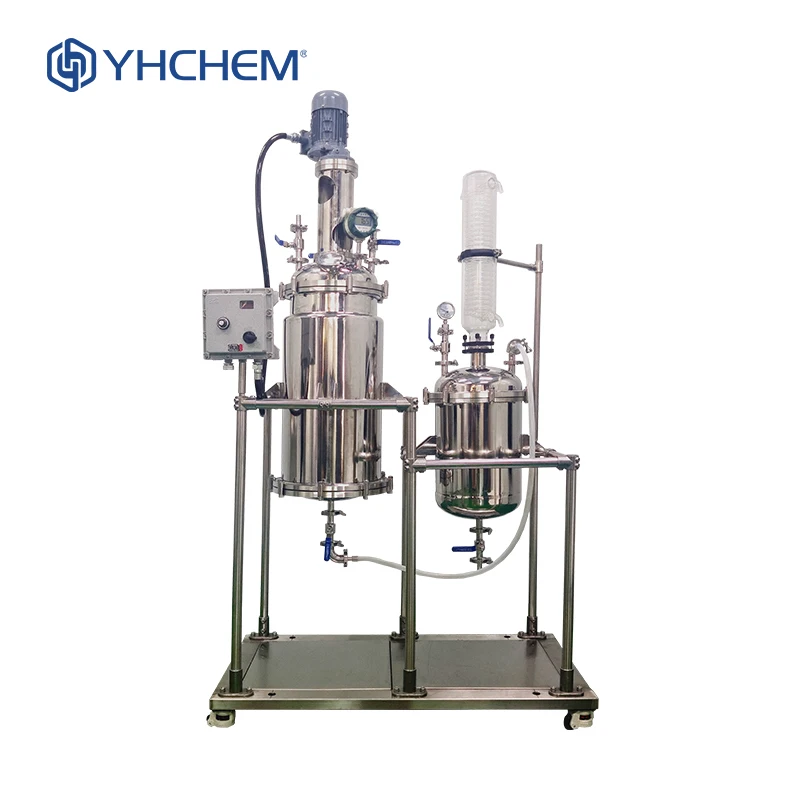

YHChem YFR series stainless steel jacketed reactor (solid phase) is thecrystallization equipment after the mixed reaction of materials, the interlayerinternal demand of chilled water or refrigerant water sharply cooling, the keylink is the size of the interlayer area, the structure of the agitator and the formof material outlet, the high precision polishing in the vessel and the vesselcleaning without dead Angle requirements to meet the process conditions.Mainly used for material mixing, cooling and freezing, crystallization and so on,widely used in pharmaceutical, dairy, food, chemical, beverage and otherindustries.
♣1.SUS304/316 Fabrication
Corrosion resistance Wear resistance High temperature High pressure resistance
♣2.Tank polishing
Up to 0.2um
♣3.Filter plate pore size 1-100um optional.
♣4.No Dead Space Design
Discharge cleaning no dead spacesanitary seal, can withstand hightemperature sterilization

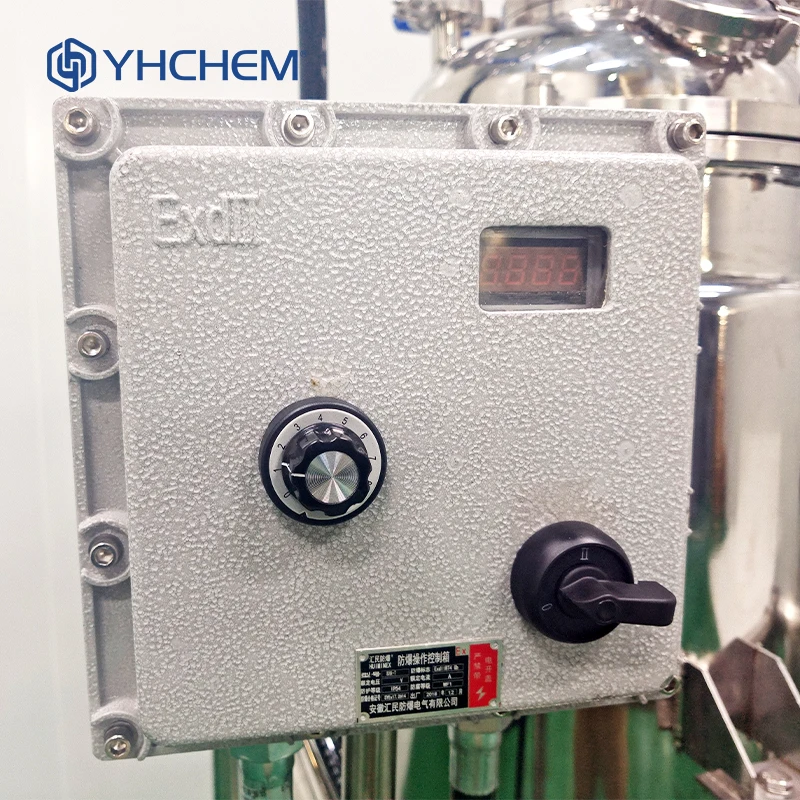

♣5.Standard Explosion-proof Design
Safer and assured
♣1.Petroleum
♣2.Rubber
♣3.Chemical industryPesticide
♣4.Dye
♣5.Food
♣6.Medicine
Can be customized according to customer's requirement.
♣1.Customized kettle body
♣2.Custom glass condenser
♣3.Customized kettlelid quant

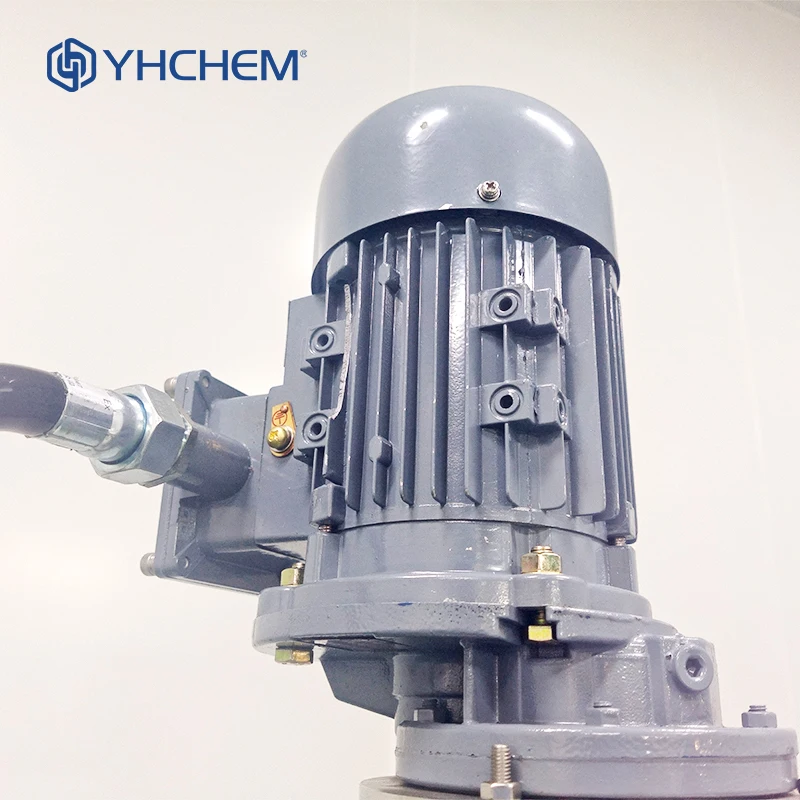

♣Motor
♣Vacuum gauge

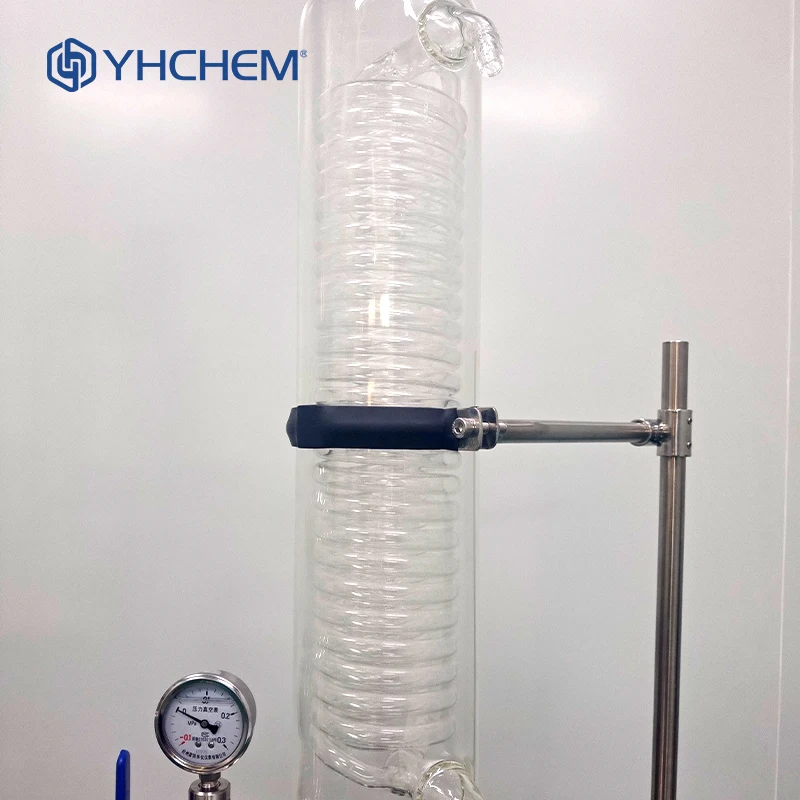

♣Condenser
♣Solld dosing opening

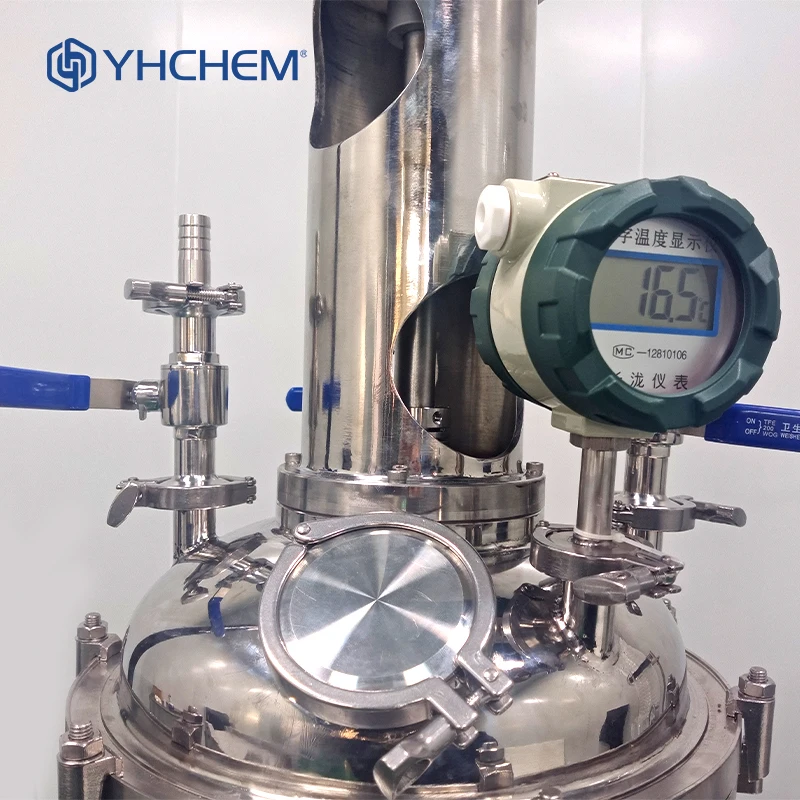

♣Thermometer
♣Storage tank
♣Stainless
♣Steel filter plate
♣Discharge valve
♣304/316 stainless steel frame
♣1.Heating coolingcirculator
♣2.Stainless SteelSolid Phase Reactor
♣3.Coolingcirculator
♣4.Water cyclevacuum pump
YHCHEM, a high-tech enterprise, was established in 2009 and headquartered inShanghai with more than 50 employees both at home and abroad and an area of5,000 square meters. We have a globally competitive production base of modernbiopharmaceutical equipment, which attributes us to be a equipment and processprovider of automatic system of synthesis, extraction, separation, and purificationfor global biopharmaceutical companies With over 10-year hard work, passionand win-win spirit,YHCHEM provides more than 8,000 equipment for hundreds otwell-known companies in more than 100 countries and regions around the worldand has successfully entered Western Europe, North America and other high-levelregulatory market, and solutions are widely used in bioengineering, pharmaceuti-cal, chemical, food, environmental protection and other fields
YHCHEM
The 10L50L100L200L300L industrial scale crystallization solid phase stainless steel reactor is a high-quality product that is suitable for laboratory, research, and industrial applications. This reactor is designed to be used for crystallization and solid-phase reactions, making it ideal for use in industries such as pharmaceuticals, chemicals, and food manufacturing.
Constructed of top-quality stainless steel which makes it durable and resistant to corrosion. Simple to wash and keeps, that will be essential for laboratories and commercial settings where hygiene and cleanliness are important.
Available in five various sizes, including 10L to 300L, which makes it a versatile and convenient options for various applications. Personalized to meets up your specific requires whether you're conducting small-scale laboratory experiments or large-scale industrial productions.
Features an design is advanced level includes a heat control systems, a stress control systems, and a stirrer. The temperature control system lets you precisely get a handles on the heats for the reactors, whilst the stress control system helps to ensures that the reactors operates at optimal pressure levels. The stirrer ensures that the reactants are mixed evenly and thoroughly, which can be essential for efficient responses and item developments is top-quality.
Includes a selection of safety features making it a safe and dependable option for laboratory and industrial applications. These security features incorporate a safety valves, stress relief valves, and heat sensors, which helps to prevent accidents and ensure that the reactor runs properly.
Overall, the YHCHEM 10L50L100L200L300L industrial scale crystallization solid phase stainless steel reactor is a high-quality product that is ideal for laboratory, research, and industrial applications. With its advanced design, durable construction, and range of safety features, this reactor is a reliable and convenient option for a ranges of different uses.
