Technical Specification:
Model |
YWT-60 |
YWT-80 |
YWT-100 |
YWT-150 |
YWT-200 |
|
Volume of charging tank (L) |
0.5 |
1 |
1 |
2 |
5 |
|
Tower height (m) |
1 |
1 |
1 |
1 |
2 |
|
Condensing area (m²) |
0.2 |
0.25 |
0.3 |
0.4 |
0.5 |
|
Rotation speed range (rmp) |
50-500 |
|||||
Operating pressures (mbar) |
≤0.001 |
|||||
Working temperature range (℃) |
≤300 ℃ |
|||||
Input voltage |
220V/1P |
|||||
Thin film distillation column is a coupling device between thin-film evaporator and distillation column.ln the process of distillation, thin film distillation column can solve the problem of thermal decomposition of heat-sensitive materials, which caused by too high temperature in the tower bottom and too long residence time inthe reboiler. lt prevents deterioration reactions such as decomposition, polymerization and oxidation of materials when heated, and effectively protects the characteristics of product materials. At the same time, compared with the traditional thin-film evaporator, the thin-film distillation column increases the function of distillation, which can better improve the purity of products and reducemore purification process steps. The excellent characteristics of negative pressure film scraping and rectification of thin film distillation column can be widely used in biopharmaceuticals, food fields, plant extraction and chemical industries.
♦♦WORKING PRINCIPLE
The material enters the main evaporator from the feeding tank, and is scraped intoa very thin and turbulent liquid film by the film scraper, and pushes downward in a spiral shape. The light product components escaping from the heating surface enter the rectification column upwards and carry out mass transfer and heat transfer between gas and liquid. The product materials are condensed by the condenser,and if the purity is not enough, they will flow back. Finally, the high purity products will be collected.
♣1.Supply Customized Services
Can supply customized service according to customer's mate-rial characteristics
♣2.Low distillation temperature and high vacuum degree
The vacuum environment with negative pressure can avoid the decomposition and poymerization of heat-sensitive materials, and reduce the distillation temperature of materials which with high boilingpoint. The material will have short residence time and high heat transfer efficiency
♣3.High degree of separation and purity
lt can separate the materials which are not easily separated by conventional distillation, and under the control of distillation column and reflux,it can obtain high-purity product.

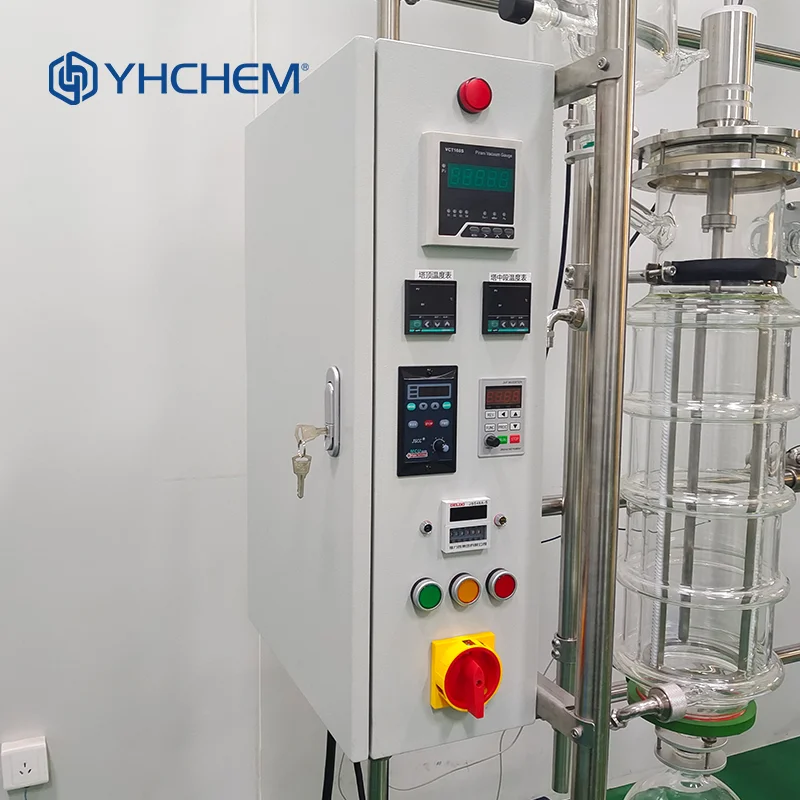

♣4.The design of main control box , easy operation
The total control box is designed to control the rotating speed, reflux ratio and vacuum display of thin film distillation.
♣Biopharmaceutical
♣Plant extraction
♣Food
♣Chemical industry
♣Cold Trap 1
♣Reflux Head

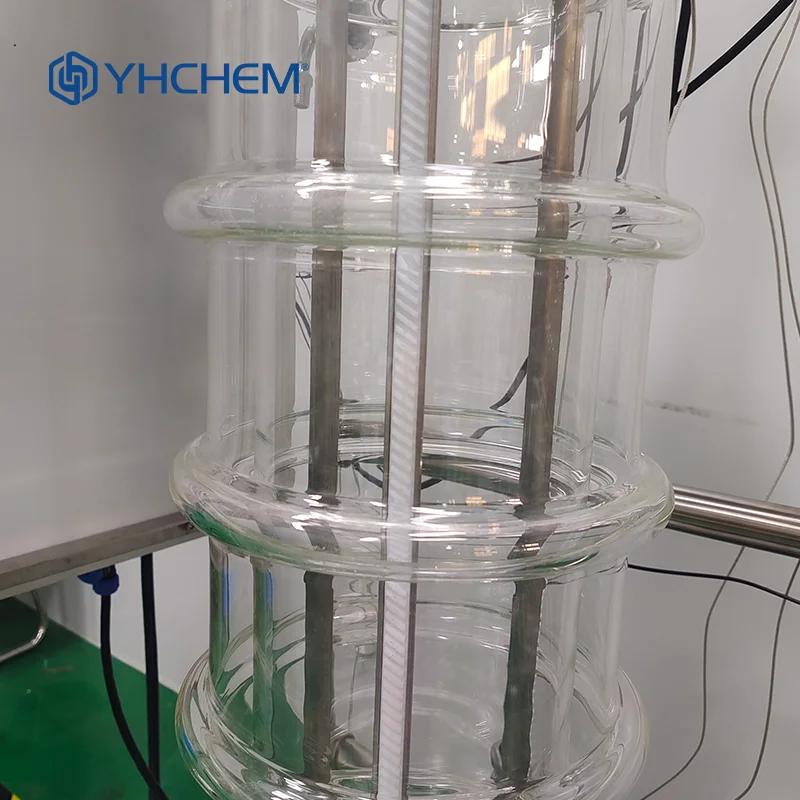

♣Distillation Column

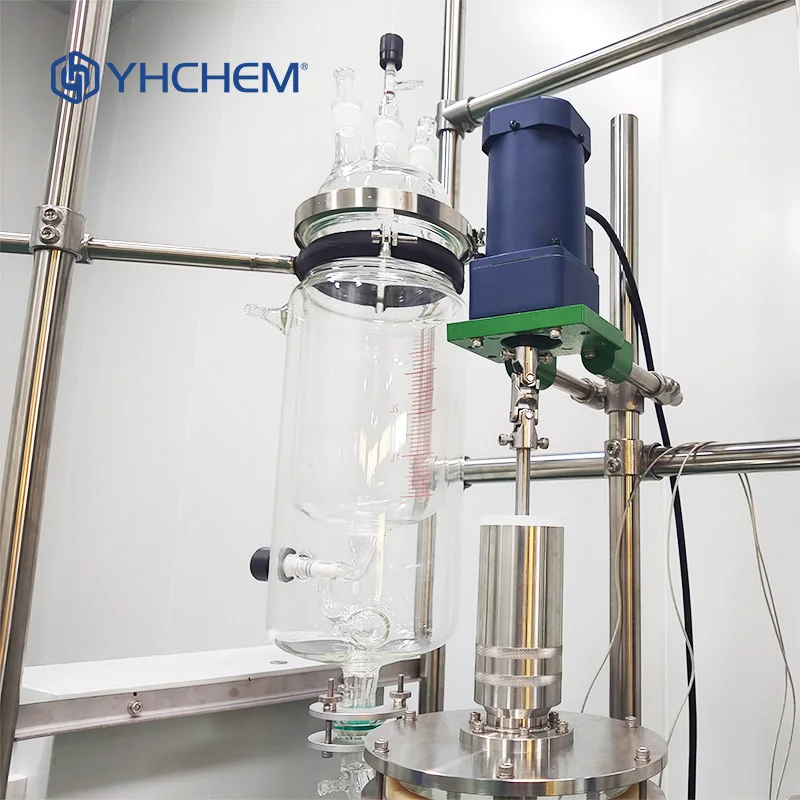

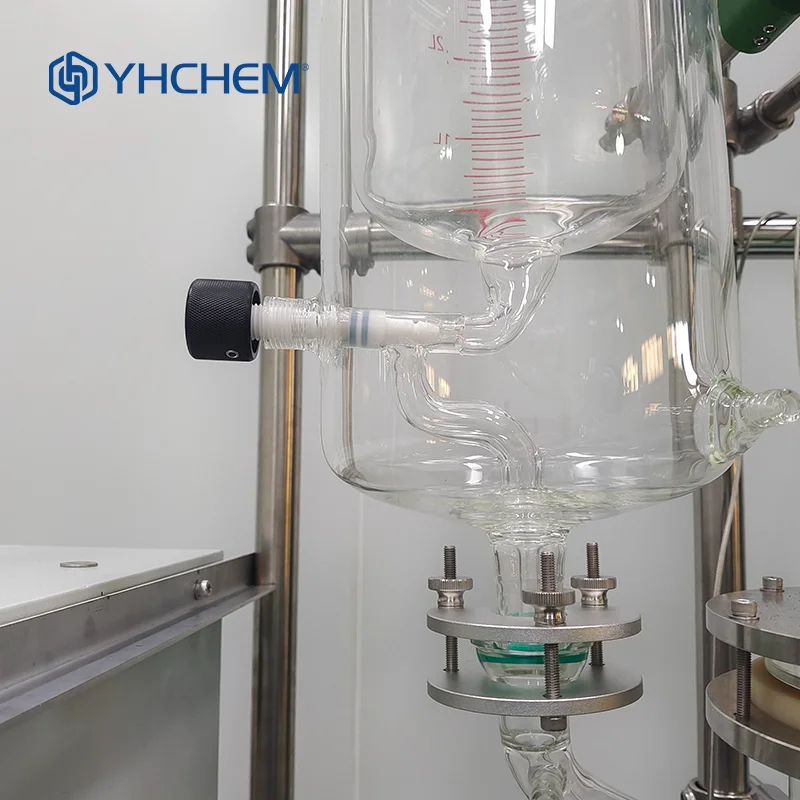

♣Feeding Vessel
♣Distillate
♣Cold Trap 2
♣Waste Gas
♣Heat Transfer Oil
♣Thin Film Main Distiller
♣Residue
♣Heating circulator
♣Cooling circulator Gear pump
♣Vacuum pump

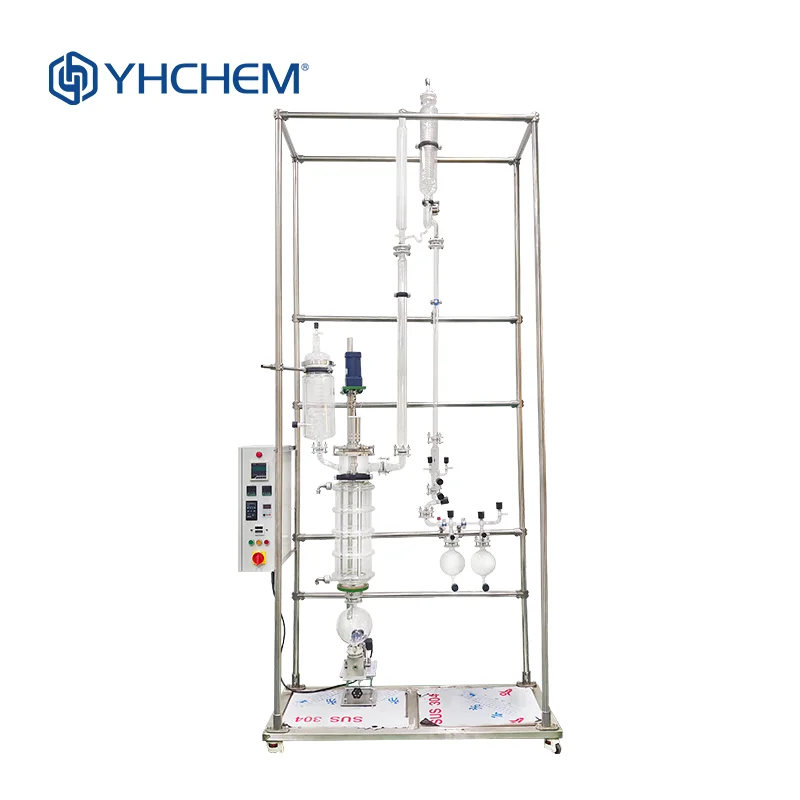

♣Thin Film Distillation Column
YHCHEM, a high-tech enterprise, was established in 2009 and headquartered inShanghai with more than 50 employees both at home and abroad and an area of5,000 square meters. We have a globally competitive production base of modernbiopharmaceutical equipment, which attributes us to be a equipment and processprovider of automatic system of synthesis, extraction, separation, and purificationfor global biopharmaceutical companies With over 10-year hard work, passionand win-win spirit,YHCHEM provides more than 8,000 equipment for hundreds otwell-known companies in more than 100 countries and regions around the worldand has successfully entered Western Europe, North America and other high-levelregulatory market, and solutions are widely used in bioengineering, pharmaceuti-cal, chemical, food, environmental protection and other fields
Brand: YHCHEM
Presenting the YHCHEM Glass Membrane Distillation Tower Laboratory Decompression Vacuum Distiller Distillation Tower Equipment, the clear answer this is certainly distillation that is ultimate. This distillation tower equipment is created specifically to provide efficient and gratification this is certainly distillation that is accurate.
The Glass Membrane Distillation Tower Laboratory Decompression Vacuum Distiller Distillation Tower Equipment includes a decompression this is certainly specialized which ensures distillation that is smooth decreasing the boiling point of materials. The apparatus is manufactured with top-notch glass materials, which provide exemplary temperature opposition, durability, and upkeep this is certainly straightforward.
This Glass Membrane Distillation Tower Laboratory Decompression Vacuum Distiller Distillation Tower Equipment gear is wonderful for splitting materials and that can be heat-sensitive which are concentrating and solvents that are eliminating effect mixtures. The distillation tower shall keep an environment this is certainly low-pressure reduces the likelihood of item contamination featuring its airtight design. This will make it chemical something perfect, educational organizations, and research facilities.
The Glass Membrane Distillation Tower Laboratory Decompression Vacuum Distiller Distillation Tower Equipment provides accurate, reliable, and efficient distillation performance featuring its dual-layered, PTFE-coated evaporator. The membrane that is specialized technology ensures smooth and safe procedure while keeping product quality this is certainly exceptional. The distillation tower allows users to get a hold on factors which are operational temperature, stress, and motion rates for optimal outcomes.
The YHCHEM Glass Membrane Distillation Tower Laboratory Decompression Vacuum Distiller Distillation Tower Equipment can be created by having a coolant that is sophisticated which effortlessly keeps the specified heat for efficient and distillation this is certainly stable. The product is easy to work well with and understand, many thanks to its display this is certainly digital and that is user-friendly.
The Glass Membrane Distillation Tower Laboratory Decompression Vacuum Distiller Distillation Tower Equipment is something which is versatile for distilling many materials, including chemical compounds, solvents, important oils, and other substances. It really is furthermore perfect for producing high-purity water, required for clinical laboratories, medical facilities, and research businesses.
The YHCHEM Glass Membrane Distillation Tower Laboratory Decompression Vacuum Distiller Distillation Tower Equipment could be the option this is certainly perfect for anyone trying to find a dependable, reliable, and distillation solution that is exact. It is manufactured using the quality materials which may be highest and intended to provide performance this is certainly very good durability that is improved. Utilizing this equipment, you obtain affordability and a response this is certainly low-cost lab distillation that is whole. Order and experience performance that is unparalleled today.
