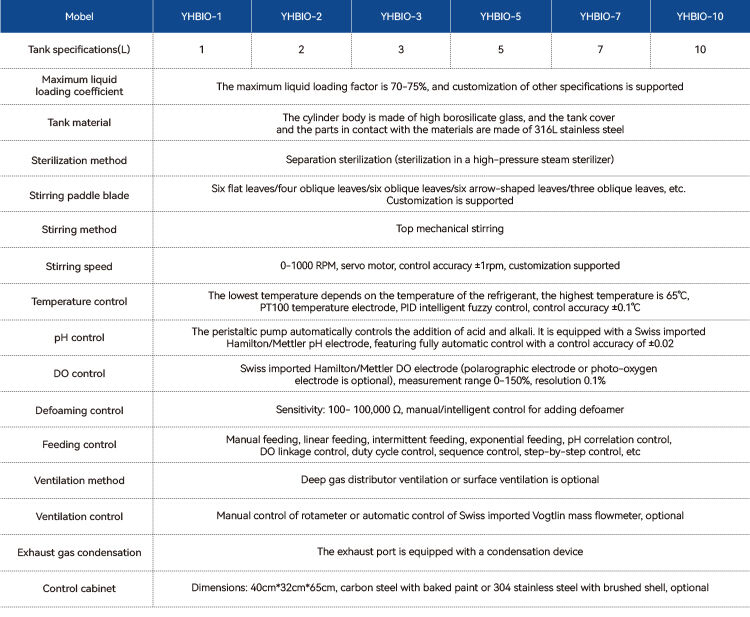

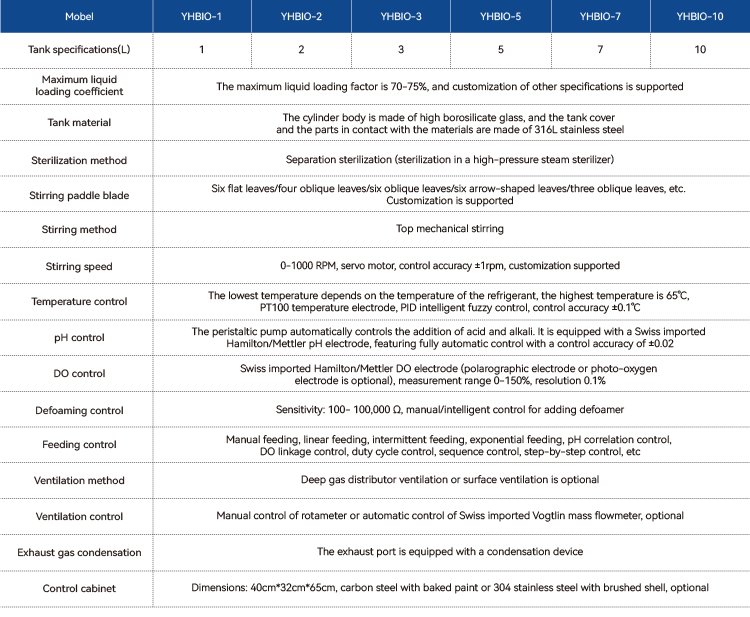

Glass Bioreactor Tank Specifications: 1~10L

Overview

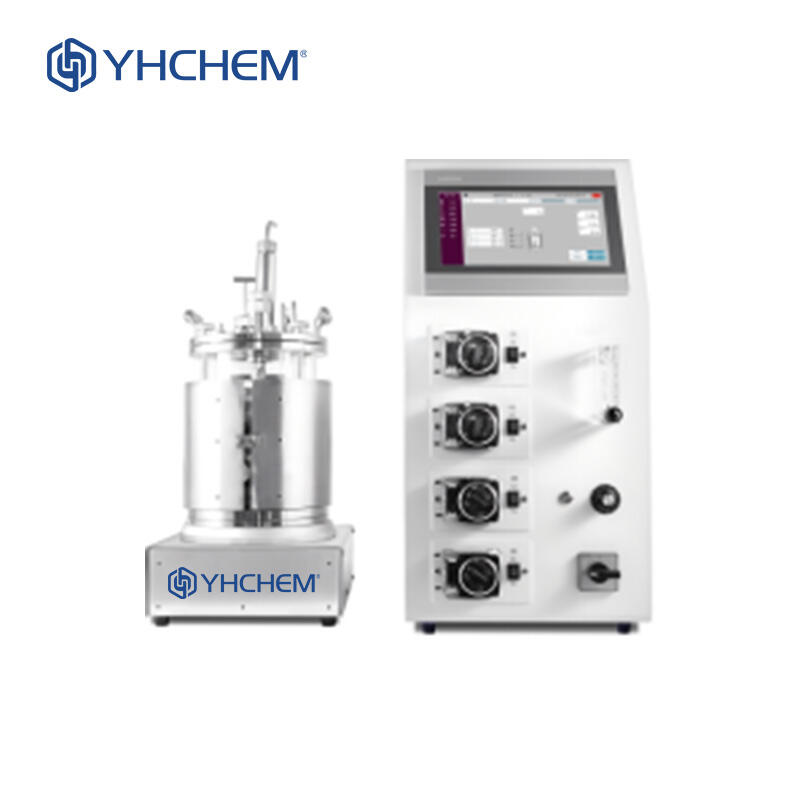

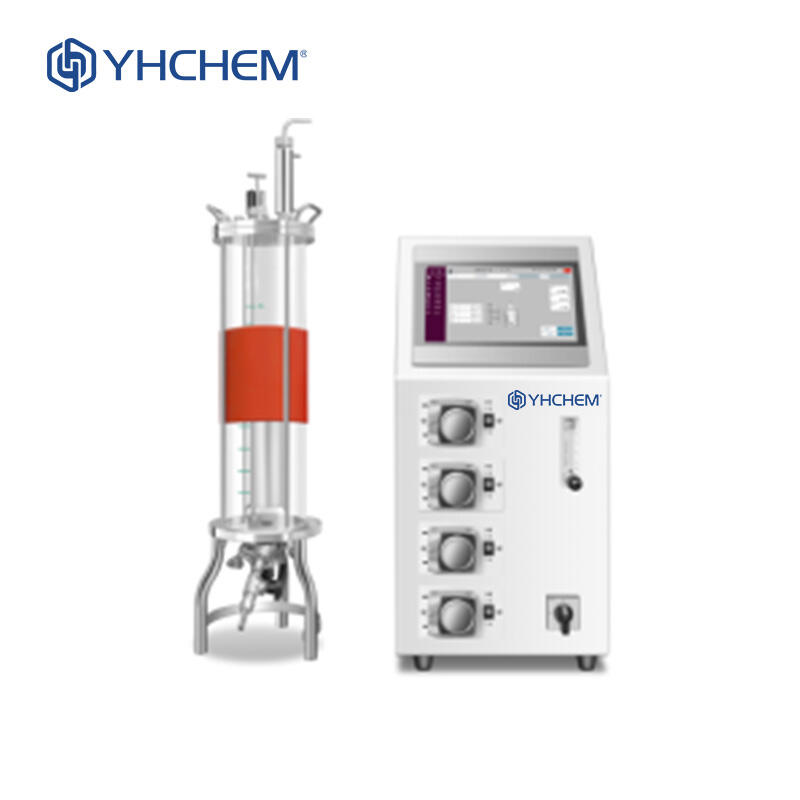

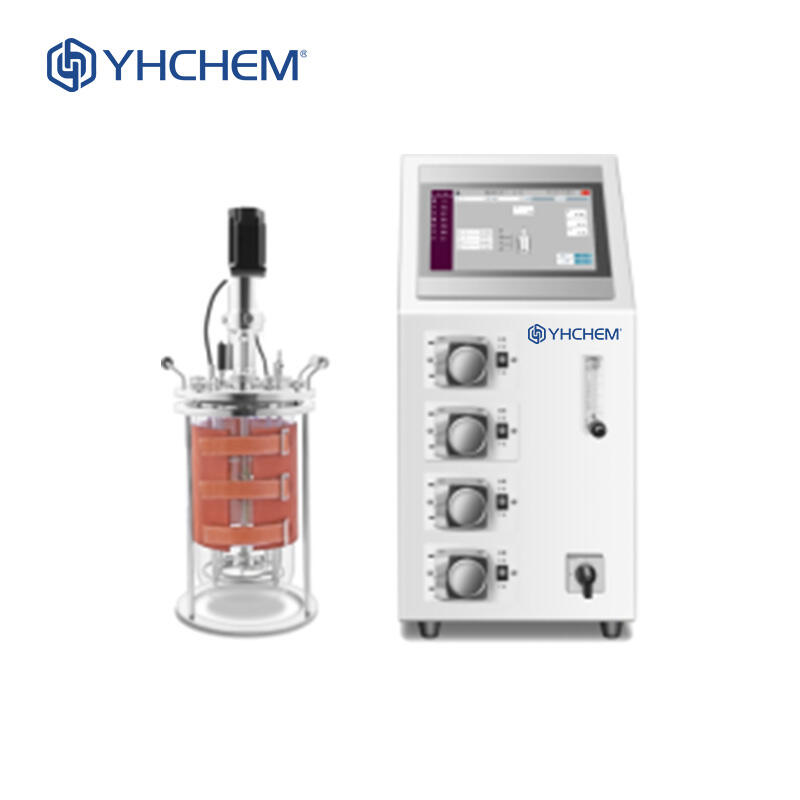

The YHChem YBR series glass bioreactor is mainly used for cell culture (such as mammalian cells) and microbial screening. It is often applied in the laboratory stage. After conducting preliminary strain cultivation, screening, and comparative experiments on a shaker, it can be used for process research and development, process optimization, and process validation, preparing for large-scale production.

Advantages

● High borosilicate 3.3 glass tank body

High transparency, facilitating real-time observation of the growth status of cells/microorganisms and changes in the fermentation broth

● Support multi-link parallel design

Multiple sets of parameter comparison tests can be conducted simultaneously, shortening the process development cycle

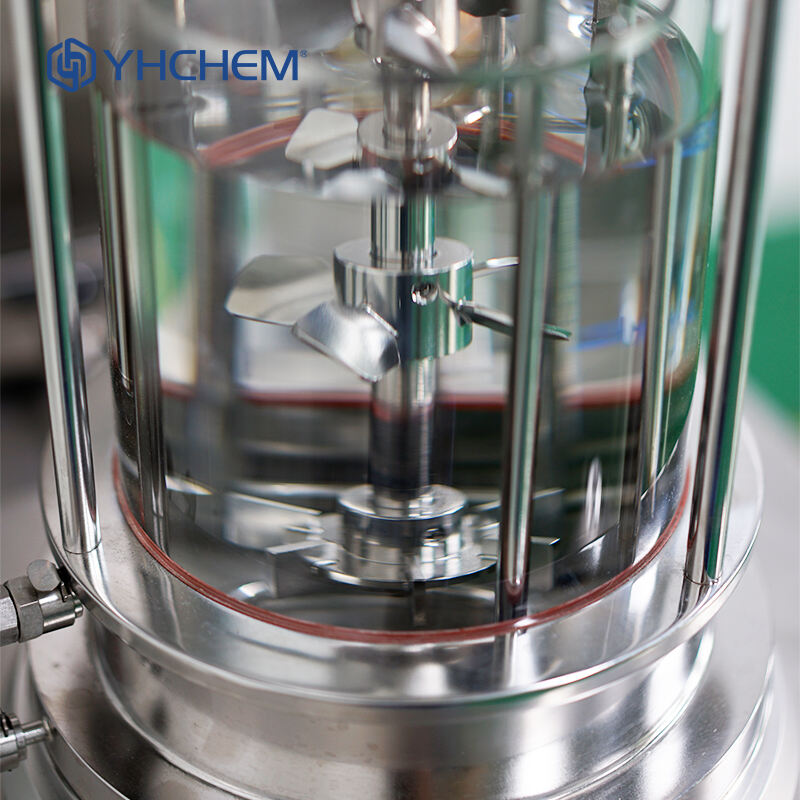

● Various types of stirring paddles

Microbial or cell cultures adapted to different shear force requirements

● Heating blanket + innovative three-dimensional hollow heat exchange baffle for temperature control

Separate the heating and cooling processes, increase the reaction rate by 100%, and achieve a temperature control accuracy of ±0.1℃

● Integrate temperature, pH, dissolved oxygen sensors and PID algorithm

The dissolved oxygen regulation range is 0-200%

● Support strategies such as pH-DO joint control feeding and index feeding

Optimize the efficiency of metabolite synthesis

● The reaction system equipped with a remote control system

It can be controlled through the APP to reduce the work intensity

● The operation interface design is streamlined

It has a recording function in formula form to reduce the error rate of repetitive operations

● Data storage and analysis are convenient

It can be directly stored on the device and then transferred to a spreadsheet on your personal device

Application field

Dairy products, beverages, bioengineering, pharmaceuticals, fine chemicals, scientific research and educational institutions
