PRODUCT DETAILS
Overview

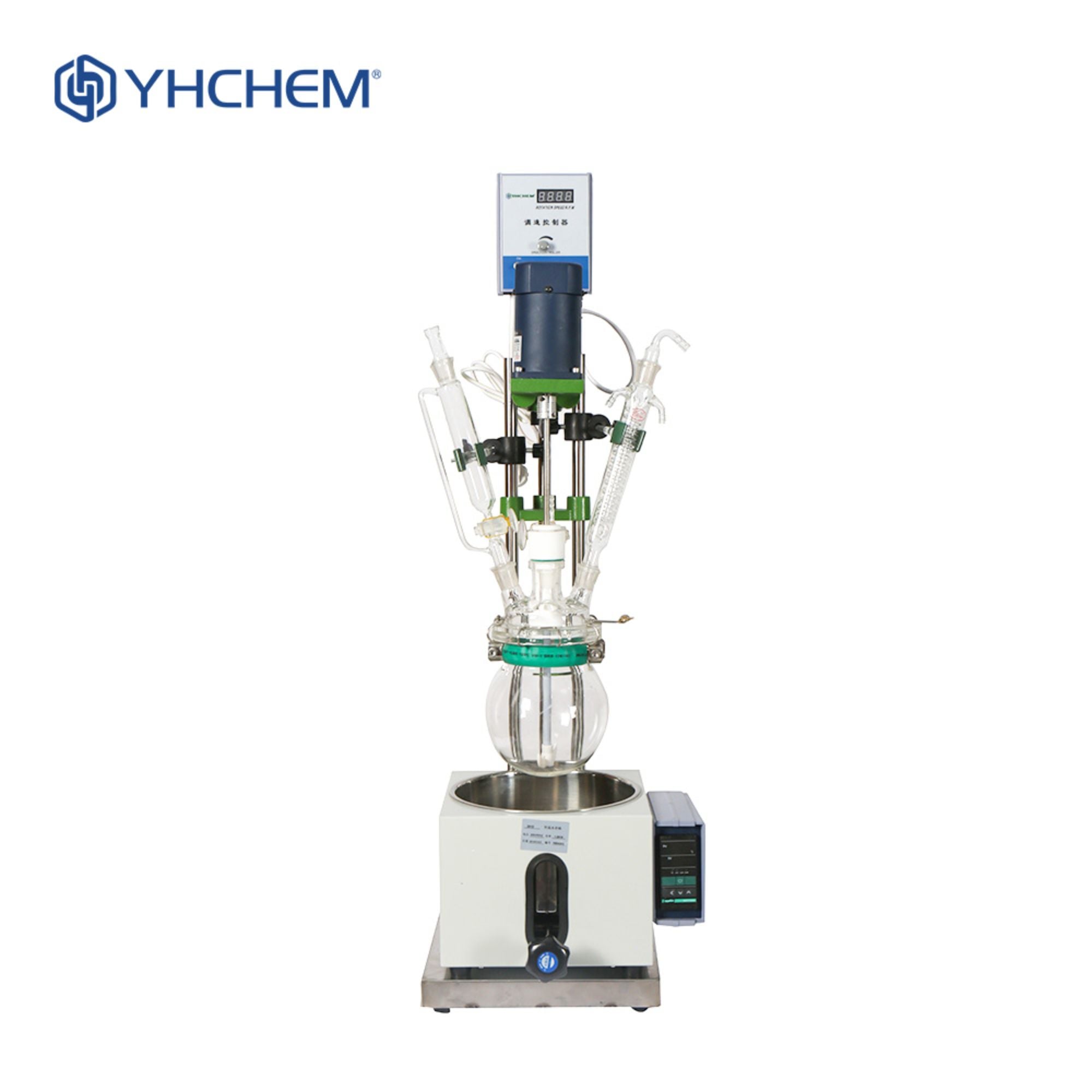

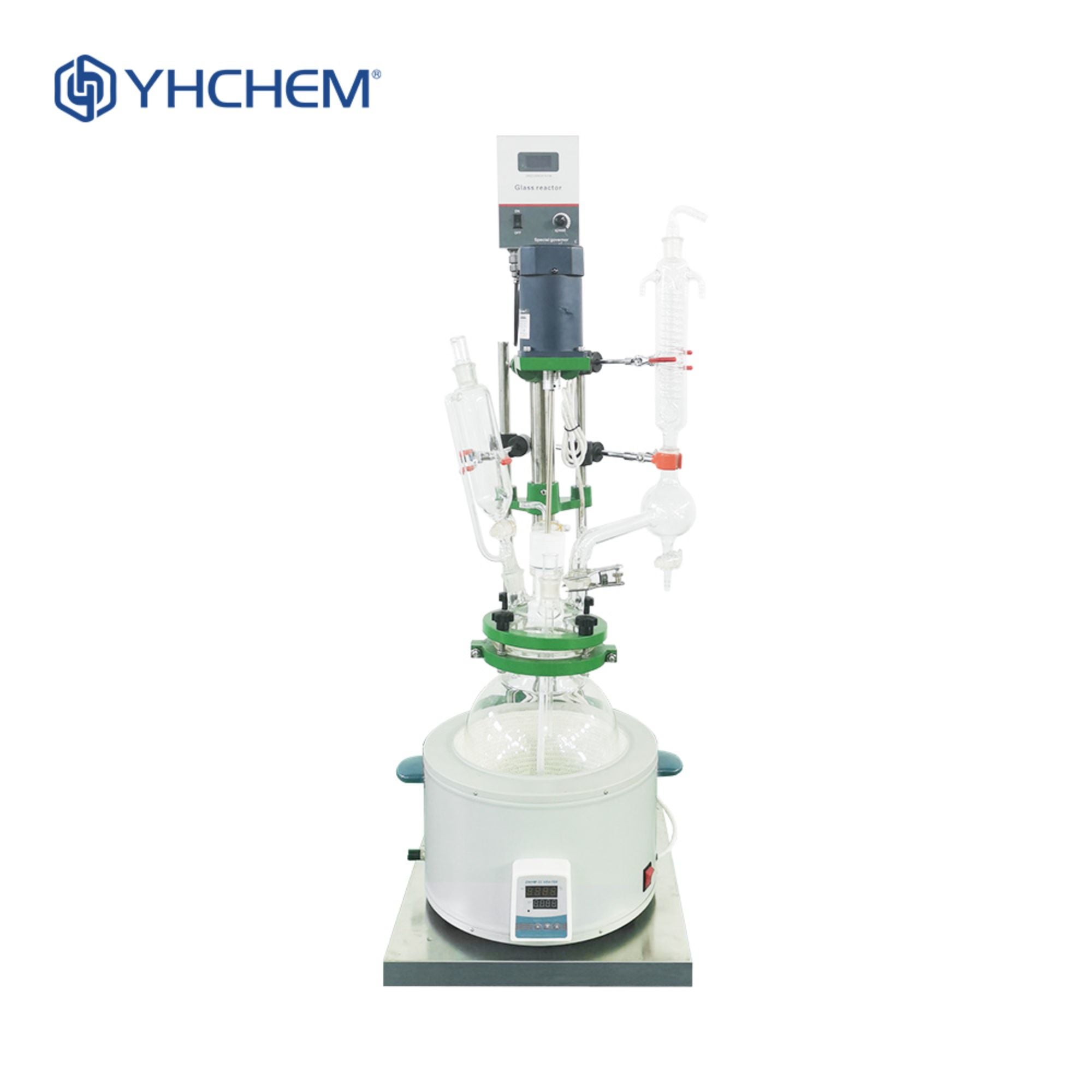

The single-layer glass reactor is the main equipment of the reaction device, and it is mainly a container that carries materials for chemical reactions. Through the structural design and parameter configuration of the container, the process requirements in the laboratory and industrial production are met. Glass single-layer reactors are widely used in petroleum, chemical, rubber, pesticide, dye, medicine and food and other fields.
Features
● High borosilicate glass 3.3

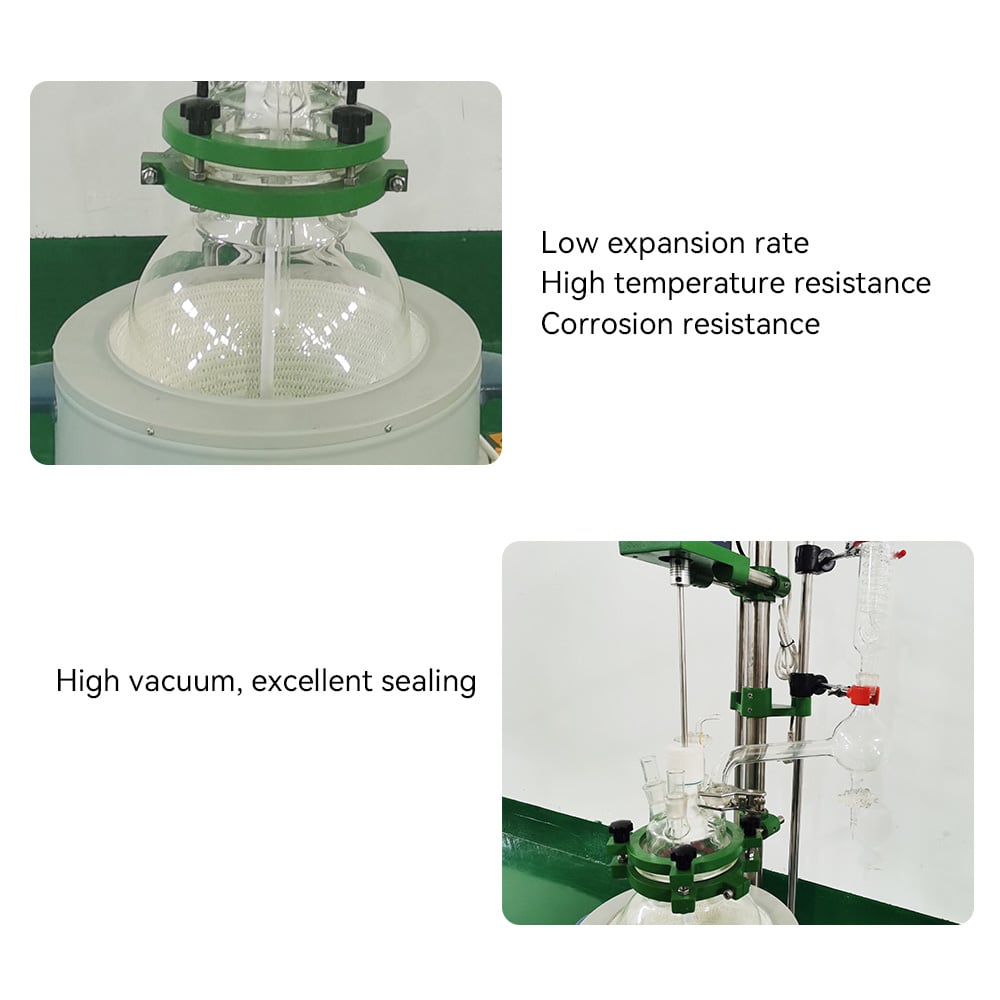

● Low expansion rate, high temperature resistance, corrosion resistance
● Fluorine rubber seal
● High vacuum, excellent sealing
● Digital frequency conversion stepless speed control

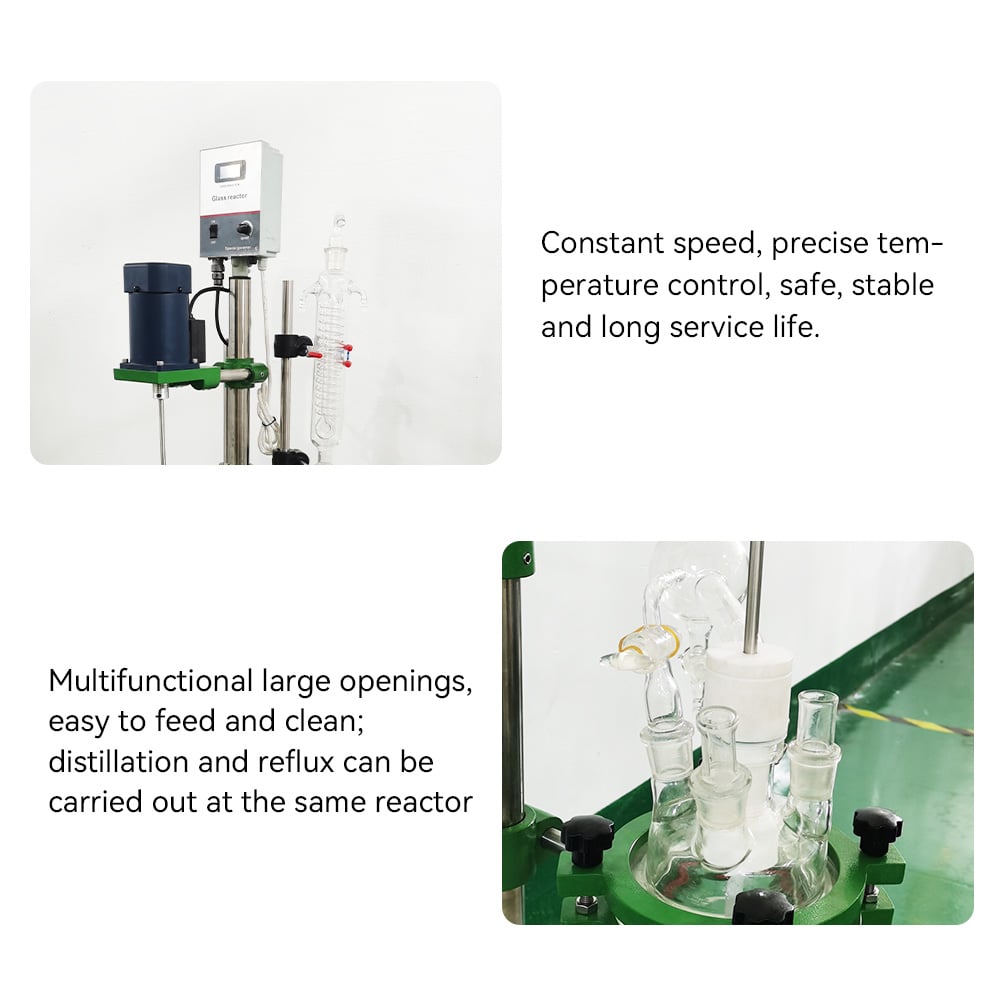

● Constant speed, precise temperature control, safe, stable and long service life
● Convenient Operation
● Multifunctional large openings, easy to feed and clean; distillation and reflux can be carried out at the same reactor
● Low expansion rate, high temperature resistance, corrosion resistance
● Fluorine rubber seal
● High vacuum, excellent sealing
● Digital frequency conversion stepless speed control
● Constant speed, precise temperature control, safe, stable and long service life
● Convenient Operation
● Multifunctional large openings, easy to feed and clean; distillation and reflux can be carried out at the same reactor
Typical Applications
Petroleum, chemicals, rubber, pesticides, dyes, medicine and food
Product Parameter
| Model | SLR-0.5 | SLR-1 | SLR-2 | SLR-3 | SLR-5 |
| Reactor Volume (L) | 0.5 | 1 | 2 | 3 | 5 |
| Condenser Heat Transfer Area (m²) | 0.1 | 0.2 | |||
| Dropping Funnel Volume (L) | 0.25 | 0.5 | |||
| Receiving Flask Volume(L) | 0.25 | ||||
| Glass Material | High borosilicate 3.3 | ||||
| Frame Material | Cast iron | ||||
| Working Temperature Range (℃) | -80~200 | ||||
| Pressure In Kettle(Mpa) | -0.098 | ||||
| Motor Power (W) | 90 | ||||
| Speed Control Mode | Electronic speed control | ||||
| Rotation Speed Range(rpm) | 0~1000 | ||||
| Sealing Parts Materia | Fluororubber | ||||
| Heating Mode | Bath heating | ||||
| Power Supply | 220V/50Hz, 1P | ||||
